# Bluetooth advertisement decoding All Efento loggers include a built-in Bluetooth Low Energy (BLE) interface. This enables smartphones, BLE gateways, and custom hardware to communicate with the loggers, retrieve their measurements, and modify their configuration when needed.\ In this article, we demonstrate how to decode and interpret the data that Efento loggers broadcast in their BLE advertising frames. ## Bluetooth Low Energy Advertising Transmissions Bluetooth Low Energy (BLE) defines two types of radio transmissions: **data transmissions** and **advertising transmissions**. Advertising is used by BLE-enabled devices to broadcast information to nearby receivers. These packets may be used to initiate a connection between devices (for example, a smartwatch announcing itself to a phone) or simply to transmit small pieces of information without ever establishing a connection (such as a logger broadcasting temperature values to any listener). Because advertising transmissions are **connectionless**, any BLE-capable device in range can receive them. The sender does not expect acknowledgments, and packets are broadcast without a guaranteed delivery mechanism. The structure of BLE advertising packets is defined by the official [Bluetooth specification](https://www.bluetooth.com/specifications/specs/core-specification/). ## Efento loggers – BLE Advertising Behavior Efento loggers use BLE advertising packets to transmit their most recent measurement along with key technical information. Each packet includes the latest measurement and its type, battery level, firmware version, optional calibration date, and the configured measurement interval.\ Advertising packets may also be **encrypted**, ensuring that only devices holding the correct encryption key can decrypt and interpret their contents. ## Receiving the data Efento loggers broadcast advertising packets continuously whenever Bluetooth is enabled. These transmissions cannot be selectively disabled (Bluetooth itself can be turned off, but if it is on, advertising will occur). Any BLE-capable device—such as a phone, tablet, or computer—can receive these packets. A simple way to view the advertising data is by using Nordic Semiconductor’s **nRF Connect** mobile application for [Android](https://play.google.com/store/apps/details?id=no.nordicsemi.android.mcp\&hl=en\&gl=US) or [iOS](https://apps.apple.com/us/app/nrf-connect-for-mobile/id1054362403), which displays advertising information from all nearby BLE devices, including the “Manufacturer data” field used by Efento loggers. {% hint style="warning" %} **Important:** If you are integrating Efento loggers with custom hardware or software, your device or program must perform **active scanning** to receive the full advertising data. {% endhint %}

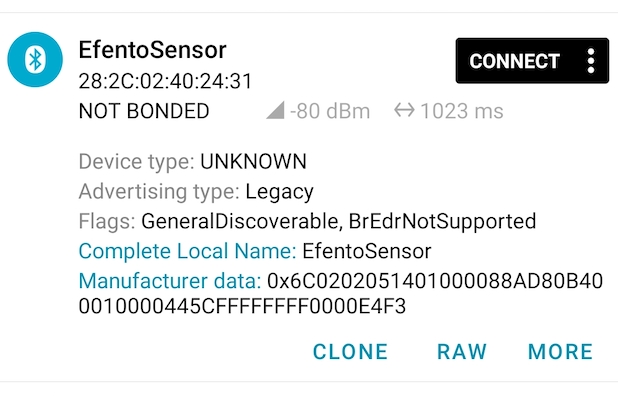

## Parsing the data Efento loggers communicate their current status using BLE advertising frames. To retrieve complete information, the receiving device (e.g., a gateway) must perform [**active scanning**](https://www.bluetooth.com/blog/advertising-works-part-1/), enabling the logger to send both its standard advertisement and its **scan response**. Efento devices running firmware version **6.X.X** send their data in **two separate frames**: * **Advertisement frame** – contains device information * **Scan response frame** – contains the measurement values To reconstruct the full logger state, the gateway must collect and parse **both** frames. ## Decoding advertisement frame * Byte 1-2: Manufacturer ID – unique identifier of Bluetooth Low Energy equipped devices manufacturer. In case of Efento it is always “6C-02” * Byte 3: Manufacturing data version – set to “03” for Bluetooth advertisement frames * Byte 4-9: Device’s serial number (BLE MAC address) * Byte 10-11: Firmware version * Bit 0-4: Long term support version * Bit 5-10: Minor version * Bit 11-15 Major version * Byte 12: Status byte: * Bit 0: Battery level; 1 – Battery OK, 0 – Battery discharged * Bit 1-2: External power supply status: 00 – Battery only device, 01 – External power supply connected, 10 – external power supply disconnected, 11 – Power supply error * Bit 3: Encryption status: 0 – disabled, 1 – enabled * Bit 4: Time synchronisation: 0 – time synchronised, 1 – time not synchronised * Bit 5: Runtime error and modem info logging: 0 – no runtime errors and modem logs disabled, 1 – runtime error or modem logs enabled * Bit 6-7: Cellular status: 00 – BLE only device, 01 – cellular device working correctly, 10 – no connection to the server, 11 – network issue or device is not registered in the networkByte 7-10: Measurement counter, incremented at each measurement (used also as CTR counter for AES128-CTR encryption), 32-bit value encoded in big endian (most significant byte first) * Byte 13-16: Measurement timestamp in POSIX format * Byte 17-18: Measurement period base * Byte 19-20: Measurement period factor * Byte 21-22: Calibration date – optional field set by Efento and stored in nonvolatile memory * Byte 23-24: Checksum; CRC16 calculated from 6-byte serial number (MAC address, starting from first byte) and bytes 1 – 22 \* Example: 6C 02 03 28 2C 02 4F 00 12 31 44 11 64 21 56 24 00 B4 00 01 00 00 9E 04
Byte(s)ValueDecoded
1, 26C 02Manufacturing specific data (always “06 02”)
303Manufacturing data format (always “03” for Efento fw 6.X.X advertisement frame)
4, 5, 6, 7, 8, 928 2C 02 4F 00 12Serial number:
MAC – 282C024F0012
10, 1131 44

Firmware version

HEX 31 44 = BIN 00110 001010 00100

Bit 0-4 = BIN 00100 = DEC 4 (LTS version)
Bit 5-10 = BIN 001010 = DEC 10 (Minor version)
Bit 11-15 = BIN 00110 = DEC 6 (Major version)

FW: 6.10.4

1211

HEX 11 = Binary 00 0 1 0 00 1

Battery level:
Bit 0 = 1: Battery – OK

External power supply status:
Bit 1-2 = 00: Battery-operated device only

Encryption status:
Bit 3 = 0: Disabled

Time synchronisation:
Bit 4 = 0: Time not synchronised

Runtime error and logging on to the modem is inactive:
Bit 5 = 0: Runtime error table is empty and logging on to the modem is inactive

Cellular status:
Bit 6-7 = 00: BLE only device

13, 14, 15, 1664 21 56 24

Measurements timestamp:

HEX 64 21 56 24 = 1679906340 = 27 March 2023 08:39:00 UTC

17, 1800 B4Measurement period base:
HEX 00B4 = DEC 180 seconds
19, 2000 01Measurement period factor:
HEX 0001 = DEC 1
21, 2200 00 No calibration date set
23, 249E 04CRC16
## Decoding scan response frame * Byte 1-2: Manufacturer ID – unique identifier of Bluetooth Low Energy equipped devices manufacturer. In case of Efento it is always “6C-02” * Byte 3: Manufacturing data version – set to “04” for scan response frames * Byte 4: Type of measurement on slot 1 * Byte 5-7: Measurement value (slot 1) * Byte 8: Type of measurement on slot 2 (optional) * Byte 9-11: Measurement value (slot 2) (optional) * Byte 12: Type of measurement on slot 3 (optional) * Byte 13-15: Measurement value (slot 3) (optional) * Byte 16: Type of measurement on slot 4 (optional) * Byte 17-19: Measurement value (slot 4) (optional) * Byte 20: Type of measurement on slot 5 (optional) * Byte 21-23: Measurement value (slot 5) (optional) * Byte 24: Type of measurement on slot 6 (optional) * Byte 25-27: Measurement value (slot 6) (optional) * Byte 28-29: Checksum, CRC16 calculated from 6-bytes serial number (MAC address, starting from first byte) and bytes 1 to 22 from manufacturing format 3 and bytes from 1 to (3+ (channel\_number \* 4)) from manufacturing format 4. ## Measurement types * Efento loggers with firmware version 6.X.X can be equipped with up to six slots and measure up to six values. * Measurements represent physicals values that are measured by the logger assigned to a device slot. Measurement types are divided into two groups: Continuous and Binary measurements. * Each measurement type defines its own: * Minimum and maximum values - measurements below the minimum or above the maximum are reported as "error" * Resolution * Unit * Metadata factor - additional information related to the measurement (e.g., sensor calibration status) The details for each measurement type are provided in the table below: | Type (HEX) | Type | Min Value | Max Value | Resolution | Unit | Continuous/ binary | Metadata factor | Summary | | ---------- | ------------------------ | --------- | --------- | ---------- | ----------- | ------------------ | --------------- | ----------------------------------------------- | | 0x01 | TEMPERATURE | -273.2 | 4 000.0 | 0.1 | °C | continuous | 1 | Temperature | | 0x02 | HUMIDITY | 0 | 100 | 1.0 | % | continuous | 1 | Humidity | | 0x03 | ATMOSPHERIC\_PRESSURE | 1.0 | 2 000.0 | 0.1 | hPa | continuous | 1 | Atmospheric pressure | | 0x04 | DIFFERENTIAL\_PRESSURE | -10 000 | 10 000 | 1.0 | Pa | continuous | 1 | Differential pressure | | 0x05 | OK\_ALARM | 0 | 1 | 1 | – | binary | 1 | Binary format for indicates state OK/Alarm | | 0x06 | IAQ | 0 | 500 | 1.0 | – | continuous | 3 | Indoor air quality | | 0x07 | FLOODING | 0 | 1 | 1 | – | binary | 1 | Binary format for flooding | | 0x08 | PULSE\_CNT | 0 | 8 000 000 | 1.0 | – | continuous | 1 | Pulse counter | | 0x09 | ELECTRICITY\_METER | 0 | 8 000 000 | 1.0 | Wh | continuous | 1 | Electricity meter (pulse counter) | | 0x0A | WATER\_METER | 0 | 8 000 000 | 1.0 | l | continuous | 1 | Water meter (pulse counter) | | 0x0B | SOIL\_MOISTURE | -1000 | 0 | 1.0 | kPa | continuous | 1 | Soil moisture | | 0x0C | CO\_GAS | 0 | 1 000 000 | 1.0 | ppm | continuous | 1 | Carbon monoxide | | 0x0D | NO2\_GAS | 0 | 1 000 000 | 1.0 | ppm | continuous | 1 | Nitrogen dioxide | | 0x0E | H2S\_GAS | 0 | 80 000.00 | 0.01 | ppm | continuous | 1 | Hydrogen sulfide | | 0x0F | AMBIENT\_LIGHT | 0 | 100 000.0 | 0.1 | lx | continuous | 1 | Illuminance | | 0x10 | PM\_1\_0 | 0 | 1 000 | 1.0 | µg/m^3 | continuous | 1 | Mass concentration of particles less than 1µm | | 0x11 | PM\_2\_5 | 0 | 1 000 | 1.0 | µg/m^3 | continuous | 1 | Mass concentration of particles less than 2.5µm | | 0x12 | PM\_10\_0 | 0 | 1 000 | 1.0 | µg/m^3 | continuous | 1 | Mass concentration of particles less than 10µm | | 0x13 | NOISE\_LEVEL | 0 | 200.0 | 0.1 | dB | continuous | 1 | Noise level | | 0x14 | NH3\_GAS | 0 | 1 000 000 | 1.0 | ppm | continuous | 1 | Ammonia | | 0x15 | CH4\_GAS | 0 | 1 000 000 | 1.0 | ppm | continuous | 1 | Methane | | 0x16 | HIGH\_PRESSURE | 0 | 200 000 | 1.0 | kPa | continuous | 1 | High pressure | | 0x17 | DISTANCE\_MM | 0 | 100 000 | 1.0 | mm | continuous | 1 | Distance | | 0x18 | WATER\_METER\_ACC\_MINOR | 0 | 99 | 1.0 | liter | continuous | 6 | Accumulative water meter (pulse counter) | | 0x19 | WATER\_METER\_ACC\_MAJOR | 0 | 999 999 | 1.0 | hectoliter | continuous | 4 | Accumulative water meter (pulse counter) | | 0x1A | CO2\_GAS | 0 | 1 000 000 | 1.0 | ppm | continuous | 3 | Carbon dioxide | | 0x1B | HUMIDITY\_ACCURATE | 0.0 | 100.0 | 0.1 | % | continuous | 1 | Humidity | | 0x1C | STATIC\_IAQ | 0 | 10 000 | 1.0 | – | continuous | 3 | Static indoor air quality | | 0x1D | CO2\_EQUIVALENT | 0 | 1 000 000 | 1.0 | ppm | continuous | 3 | Carbon dioxide equivalent estimate | | 0x1E | BREATH\_VOC | 0 | 100 000 | 1.0 | ppm | continuous | 3 | Breath-VOC estimate | | 0x1F | CELLULAR\_GATEWAY | 0 | 4 194 303 | – | – | continuous | 1 | Cellular gateway | | 0x20 | PERCENTAGE | 0.00 | 100.00 | 0.01 | % | continuous | 1 | Percentage | | 0x21 | VOLTAGE | 0.0 | 100 000.0 | 0.1 | mV | continuous | 1 | Voltage | | 0x22 | CURRENT | 0.0 | 10 000.00 | 0.01 | mA | continuous | 1 | Current | | 0x23 | PULSE\_CNT\_ACC\_MINOR | 0 | 999 | 1.0 | Pulses | continuous | 6 | Accumulative pulse counter | | 0x24 | PULSE\_CNT\_ACC\_MAJOR | 0 | 999 999 | 1.0 | Kilo Pulses | continuous | 4 | Accumulative pulse counter | | 0x25 | ELEC\_METER\_ACC\_MINOR | 0 | 999 | 1.0 | Wh | continuous | 6 | Accumulative electricity meter (pulse counter) | | 0x26 | ELEC\_METER\_ACC\_MAJOR | 0 | 999 999 | 1.0 | kWh | continuous | 4 | Accumulative electricity meter (pulse counter) | ## Decoding continuous sensor type Each continuous measurement consists of a value and optional metadata. Value and metadata are defined by the following formulas: ``` Value = IntegerPart(raw_value / metadata_factor) * resolution Metadata = |raw_value| mod metadata_factor ``` Values are encoded using ZigZag. #### Example Scan response frame: 6C 02 04 01 00 01 C0 02 00 00 4C 28 30
Byte(s)ValueDecoded
1, 26C 02Manufacturing specific data (always “06 02”)
304Manufacturing data format (always “04” for Efento fw 6.X.X scan response frame)
401Slot type:
1 – Temperature
5, 6, 700 01 C0HEX 01 C0 = DEC 448
ZIGZAG 448 = 224
(224/1)*0.1 = 22,4 -> Slot 1 measurement value: 22,4°C
8Slot type:
2 – Humidity
9, 10, 1100 00 4CHEX 4C = DEC 76
ZIGZAG 76 = 38
(38/1)*1 = 38 Slot 2 measurement value: 38%
12, 1328 30CRC16
## Decoding binary sensor type Each binary measurement can only have 2 states: inactive (`0` ) or active (`1` ). The binary sensor data is encoded in a **24-bit format**, consisting of: * **Value field** (18 bits) * **Status field** (6 bits) This structure represents the channel state over the last measurement period bases. #### Value field (bits 0-17) Each bit represents the sensor state for one measurement period. * `0` = inactive * `1` = active * **Bit 0 (LSB)** - most recent completed measurement period * **Bit 17** - oldest stored measurement To calculate the timestamp of bit `n`: ``` timestamp = currentTime - (currentTime % period) - (n × period) ``` Where: * `currentTime` = [Measurement timestamp](#decoding-a-dvertisement-frame) field * `period` = [Measurement period base](#decoding-a-dvertisement-frame) filed * `n` = bit position (0–17) #### **Status field (bits 18-23)** Indicates how many valid measurements are present in the Value field. {% hint style="info" %} Always read the **Status field first** to determine how many bits in the Value field are valid. {% endhint %} Interpretation: * `18` → All 18 bits (0–17) are valid * `< 18` → Only bits `0` to `n-1` are valid - **common after device power-up or restart** * `> 18` → Channel error - **treat the reading as invalid due to channel error** #### Status field decoding examples **Status field = 18** Value received in the scan response: (HEX) 0x48001F -> (BIN) 010010 000000000000011111 Status field = (BIN) 010010 -> (DEC) 18 Value field (BIN): 000000000000011111 In this example, all 18 bits in the Value field represent valid measurements. The channel state changed from `0` to `1` at: ``` currentTime − (4 × period) ``` After this transition, the state remained `1` for all subsequent measurement periods (up to the most recent one). **Status field <18:** Value received in the scan response: (HEX) 0x080002 -> (BIN) 000010 000000000000000010 Status field = (BIN) 000010 -> (DEC) 2 Value field (BIN): 000000000000000010 In this example, only the two least significant bits (LSBs) represent valid measurements. The channel state changed from `1` to `0` during the most recent measurement period. This situation typically occurs after the device has been powered on or reset, when fewer than the full set of measurements have been recorded. **Status field >18:** Value received in the scan response: (HEX) FFFFFE -> (BIN) 111111 111111111111111110 Status field = (BIN) 011111 -> (DEC) 63 This indicates an error condition (no measurement), and the values from the Value field should be ignored. #### Mapping of Values by Measurement Type The interpretation of `0` and `1` depends on the selected [Measurement type](#measurement-types): | Type | State '0'Text | State '1' | | --------------- | ------------------ | -------------- | | OK\_ALARM | OK | Alarm | | FLOODING | Water not detected | Water detected | | OUTPUT\_CONTROL | OFF | ON | #### Example Scan response frame 6C 02 04 05 4B FF FF C8 F9
Byte(s)ValueDecoded
1, 26C 02Manufacturing specific data (always “06 02”)
304Manufacturing data format (always “04” for Efento fw 6.X.X scan response frame)
405Slot type:
5 – Ok / Alarm
5, 6, 74B FF FF(BIN) 010010 111111111111111111
Status field = 18
Value = 1 s
12, 13C8 F9CRC16
