Technical parameters

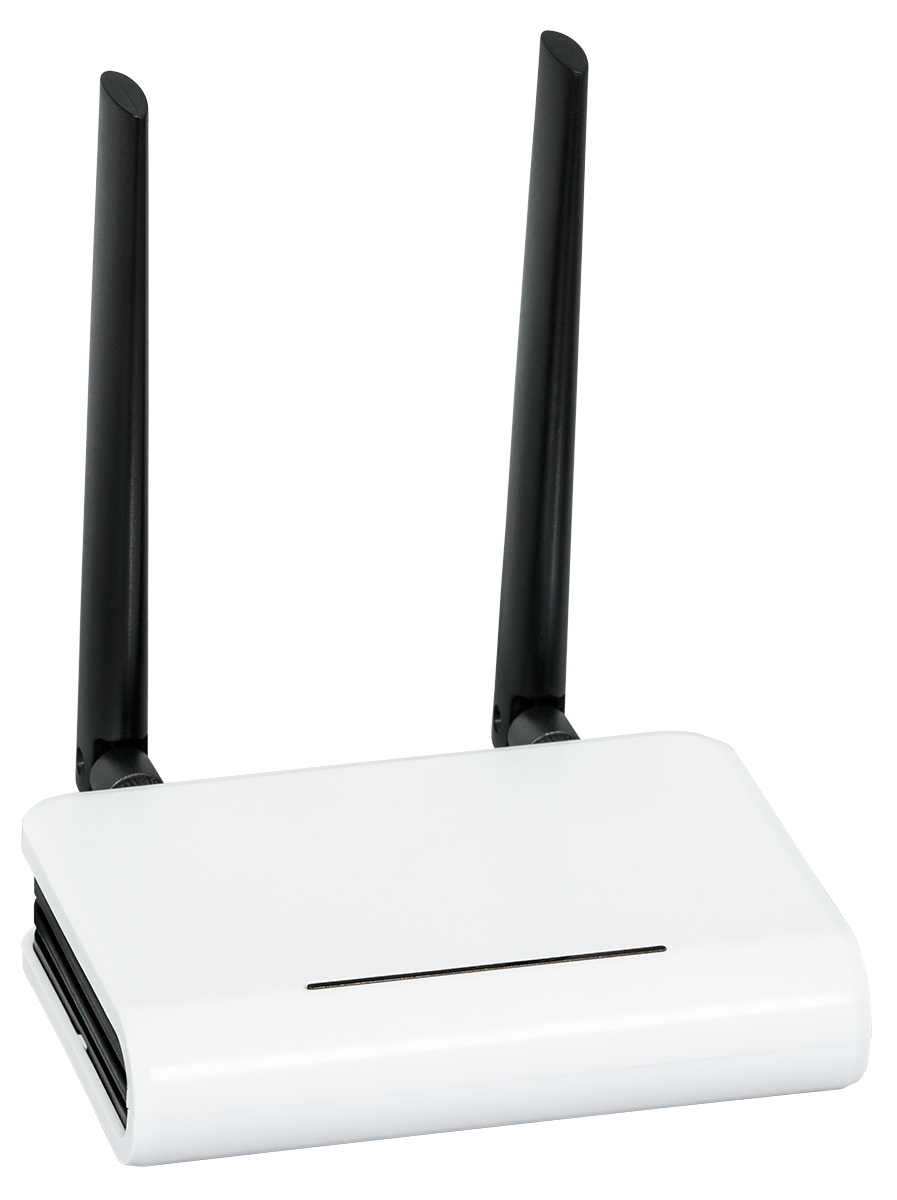

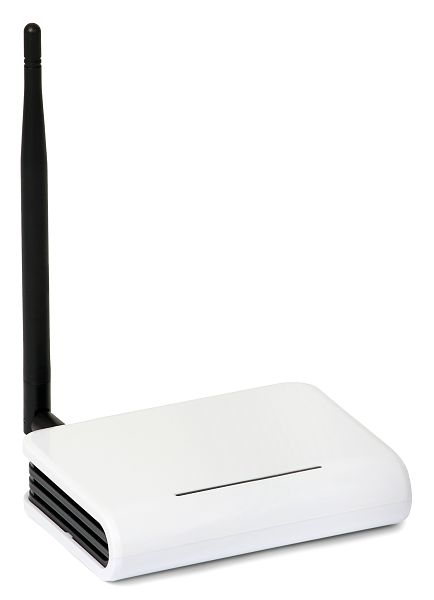

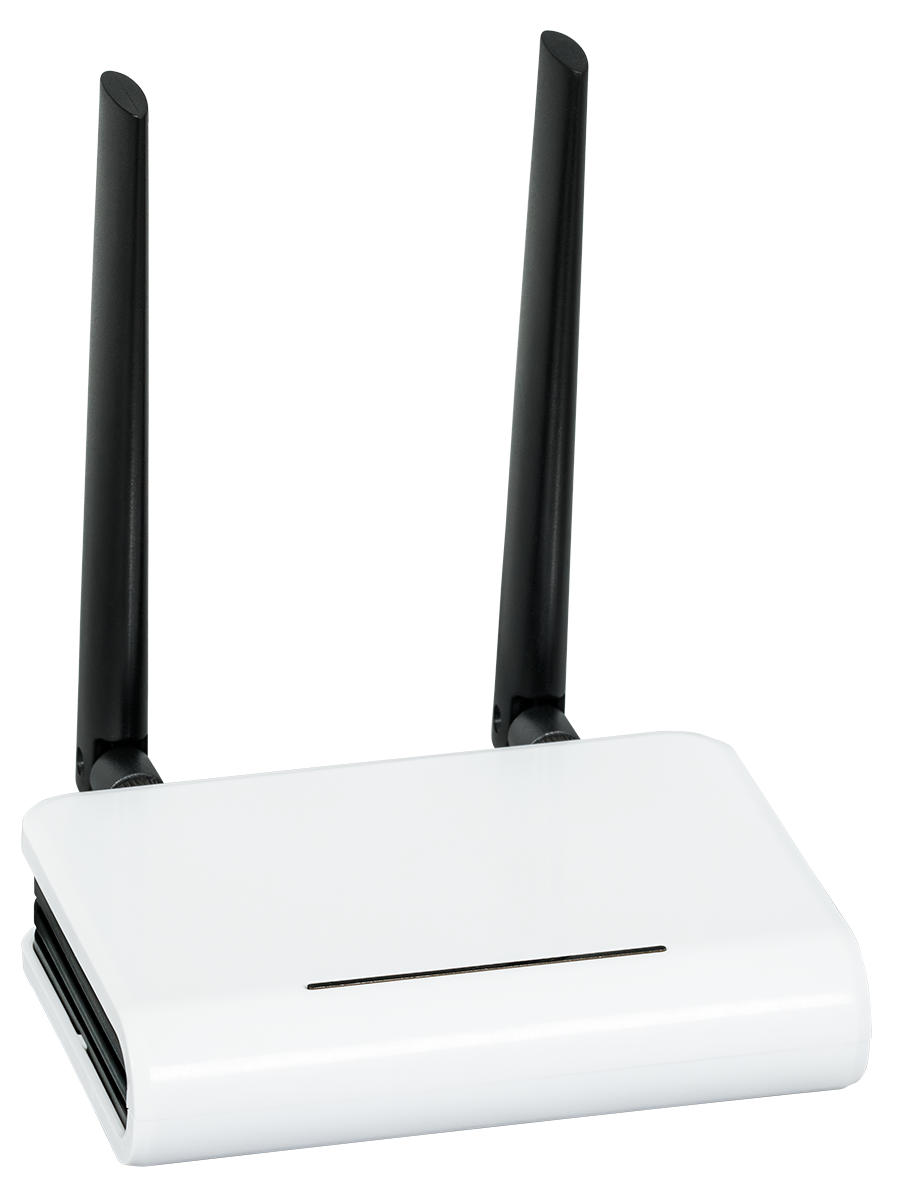

Efento offers three types of gateways to suit different connectivity and deployment needs: Ethernet, Ethernet with PoE and LTE. Each variant provides the same core functionality (collecting data from Efento wireless loggers and transmitting it to the cloud) but differs in network connection options, power supply methods, and ideal use cases.
Bluetooth
Communication: Bluetooth Low Energy (BLE) Encryption: AES128 Radio frequency: 2,4 GHz Power: 2,5 mW (4 dBm) Range: up to 100 m (LOS) Transmission frequency: 1 s
Communication: Bluetooth Low Energy (BLE) Encryption: AES128 Radio frequency: 2,4 GHz Power: 2,5 mW (4 dBm) Range: up to 100 m (LOS) Transmission frequency: 1 s
Communication: Bluetooth Low Energy (BLE) Encryption: AES128 Radio frequency: 2,4 GHz Power: 2,5 mW (4 dBm) Range: up to 100 m (LOS) Transmission frequency: 1 s
Communication
Standard: IEEE 802.3, IEEE 802.3u Ethernet interface: RJ45 socket
Standard: IEEE 802.3, IEEE 802.3u Ethernet interface: RJ45 socket
Standard: LTE Cat 1
Supported bands: LTE-FDD 1/3/5/7/8/20/28
Supported protocols
HTTP, HTTPS, REST
HTTP, HTTPS, REST
HTTP, HTTPS, REST
Power supply
Power adapter: USB C, 230V AC, 5V DC / 1.0 A
Power adapter: USB C, 230V AC, 5V DC / 1.0 A PoE: 802.3af (802.3at Type 1)
Power adapter: USB C, 230V AC, 5V DC / 1.0 A
Backup battery: LI-Po, 2000 mAh (up to 12 hours backup power)
Working conditions
0 – 40°C, 10 – 90% RH
Indoor use only
0 – 40°C, 10 – 90% RH
Indoor use only
0 – 40°C, 10 – 90% RH
Indoor use only
Dimensions
Size: 110 x 80 x 25 mm
Weight: 105 g
Size: 110 x 80 x 25 mm
Weight: 105 g
Size: 110 x 80 x 25 mm
Weight: 150 g
SIM card: Nano size (4FF) (not included)
